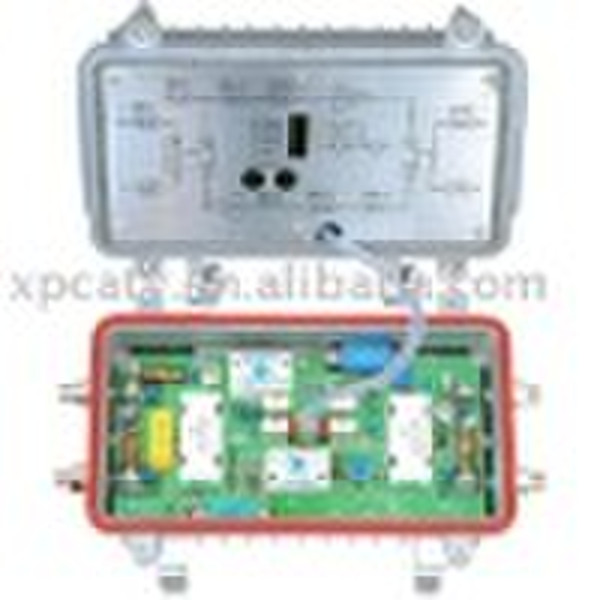

CATV 2 way Trunk Amplifier

CATV 2way trunckAmplifier (GF-8055R-2)/CATV OUTDOOR AMPLIFIEIR Use in CATV networkFeatures: Imported amplifying module to amplifying RF signal and send it into distribution network. Silicon and GaAs amplifying module effectively enhance non-linearity parameter, output capability and decrease noise figure Two-way modularizing designing, including forward channel, return channel, Send back upstream RF or data signal can be sent to optical node . User configurable, defaulted forward channel 862MHz platform design, 550 MHz, 750 MHz, 862 MHz compatible, easy online upgrade Fittings for amplifier( attenuator, equalizer, two-way filter) adopt plug-in type, adjustable and fixed attenuator and equalizer RF level test port for input and output Pre-distortion for equalizer, effectively eliminate bulge phenomenonSpecifications:ItemUnitParameterRemarkForwardReverseFrequencyMHZ47/82-8625-35/65Diplex Filter Options:5/30, 5/42, 5/65Typical Input LeveldBμv7580Typical Output LeveldBμv10898FlatnessdB+/-0.75Noise FiguredB6.56.5At 25o C (75oF)CTBdB>67.10-With Flat output at 105 dBuVCSOdB>64.10-Maximum Reverse Output LeveldBμv-11050dBmVReturn LossdB15.214.3TypicalPower supplyVAC220V AC 30/90 (50-60Hz)Power ConsumeW<25<20 without returnAnti-strike VoltagekV6kV/200 AmpsA3 Ring waveDimensionsMM265*179*110 WeightKGS2.3
