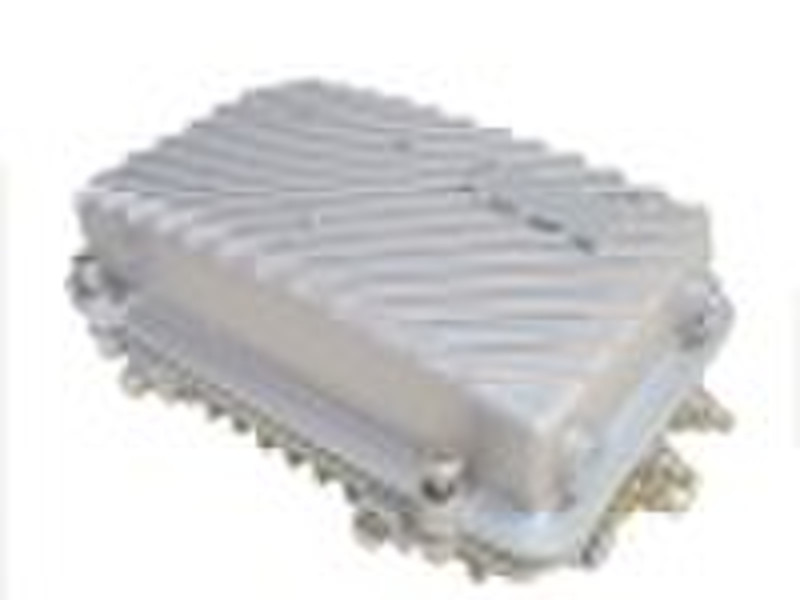

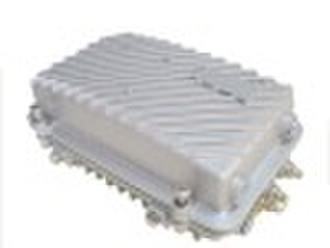

CATV waterproof fiber optical receiver

CATV waterproof fiber optical receiver/optica node CATV optical receiver adopts high-quality optical module or gas module,ensuring the high reliability of the machine. Feature: 1).47-862MHz forward frequency range,100 channels signal transmitting 2).Double Philips or PDI forward amplifier nodules 3).Two-output or 4 output selection 4). New type low voltage power switch (AC220V), fitting for higher power supplying condition. 5).ReceivingOptical Wavelength:1300mn 1600nm. 6).Ruturn path can use at any time and update 7).With optical power monitor. 8). Power supply: 60V/AC and 220V/AC optional. 9).SMPS and with wide range of voltage. 10).Ruturn path can use at any time and update 11). With optical power monitor.12). Power supply: 60V/AC and 220V/AC optional.13) .SMPS and with wide range of voltage. catv opticreceiver Specifications Item Unit Parameter Optical wavelength nm 1300-1600 Optical power of standard input dBm -1 Range of input power dBm -7 +2 Optical output connector FC/APC(or SC/APC) Optical return loss dB ≥45 Output impedance Ω 75 Output level dBuv 108 C/N(Standard input optical power dBc ≥51 C/CSO dBc ≥60 C/CTB dBc ≥65 Down-Link operating frequency band MHz 47-750 47-862 Up-Link operating frequency band MHz 5-30 5-42 or 5-65 Inband Flatness dB ≤0.75 Weight KG 3.60(A) 1.11(B) 2 (C) Dimension Mm 330*225*13
